AA-D-600D

GSA Standards for Security Vault Doors

International Vault products are manufactured to the most stringent security standards, including the modular vault security standards set forth by the US General Services Administration.

To learn more, call us today at 833-311-3132, or visit our easy-to-use contact form to request more information.

Security Vault Doors

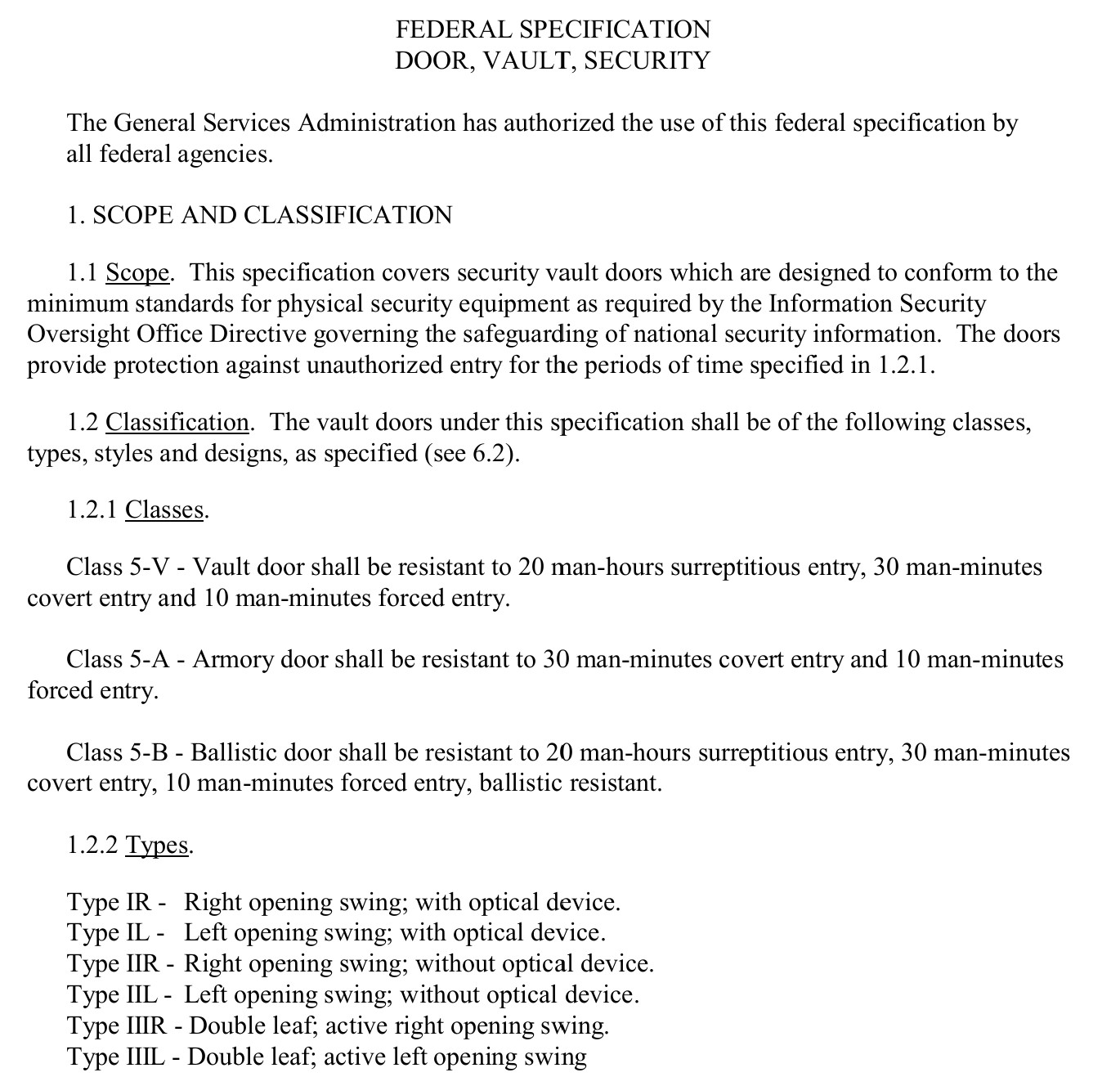

1. SCOPE AND CLASSIFICATION

1.1 Scope. This specification covers security vault doors which are designed to conform to the minimum standards for physical security equipment as required by the Information Security Oversight Office Directive governing the safeguarding of national security information. The doors provide protection against unauthorized entry for the periods of time specified in 1.2.1.

1.2 Classification. The vault doors under this specification shall be of the following classes, types, styles and designs, as specified (see 6.2).

1.2.1 Classes

Class 5-V – Vault door shall be resistant to 20 man-hours surreptitious entry, 30 man-minutes covert entry and 10 man-minutes forced entry.
Class 5-A – Armory door shall be resistant to 30 man-minutes covert entry and 10 man-minutes forced entry.
Class 5-B – Ballistic door shall be resistant to 20 man-hours surreptitious entry, 30 man-minutes covert entry, 10 man-minutes forced entry, ballistic resistant.

1.2.2 Types

Type IR – Right opening swing; with optical device.
Type IL – Left opening swing; with optical device.
Type IIR – Right opening swing; without optical device.
Type IIL – Left opening swing; without optical device.
Type IIIR – Double leaf; active right opening swing.
Type IIIL – Double leaf; active left opening swing.

1.2.3 Styles

AA-D-600D
Style H – Hand change combination lock.
Style K – Key change combination lock.

1.2.4 Design

Design S – Single lock.
Design B – No exterior hardware. (Types I and II only)
